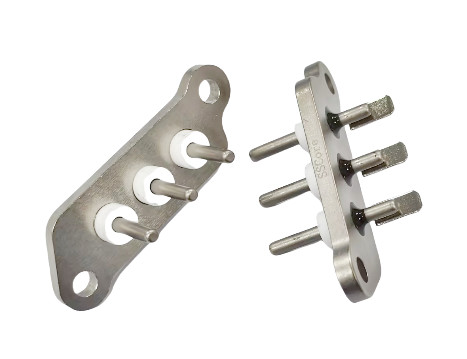

Product Name: High-Current Sealed Terminal
1. Product Overview
Our high-current sealed terminal is designed to meet the demanding requirements of various electrical applications. It features a robust construction and excellent electrical performance, making it an ideal choice for professionals in the field.
2. Key Features
| Feature | Details |
| Needle Length | 30.6mm, providing a secure and reliable connection in different electrical setups. |
| Material Quality |
- Body: Made of 45 steel, ensuring durability and strength.
- Pins: Constructed with SUH446 stainless steel, resistant to corrosion and wear.
- Glass: Utilizes ELA 48# glass for insulation and protection.
- Tab: SPCC with nickel plating (2 - 5 um), enhancing conductivity and solderability. |
| Electrical Performance |
- Maximum Current: Capable of handling up to 30A, with a normal working current of 25A, ensuring stable power transmission.
- Temperature Rise: Keeps the temperature rise less than 40°C during operation, guaranteeing the safety and longevity of the terminal and connected components. |
| Sealing Integrity | No scratches, cracks, or burrs on the sealing area, maintaining a high level of insulation and preventing leakage. |
| Testing Standards |
- Insulation Resistance Test: Passes a static check of 1000MΩ @ 1000VDC.
- Hi-Pot Test: Successfully withstands a static check of 3000VAC for 1 second with a maximum leakage current of 0.5mA, without breakdown or flashover.
- Leak Test: Holds up to 4 MPa with N2 pressure without any leaks. |
| Welding Strength | The tab welding strength meets a torque requirement of 0.98N.m min., ensuring a firm and reliable connection, with no shedding allowed. |
| Surface Treatment | Electroless nickel plating (except tabs) with a thickness of 3 - 5 μm, enhancing the overall appearance and corrosion resistance of the terminal. |
| Working Temperature Range | Operates effectively within a wide temperature range of -40°C to +150°C, suitable for various environmental conditions. |
3. Application Areas
This sealed terminal is widely used in industries such as automotive, industrial control systems, power electronics, and telecommunications, where reliable and high-current connections are essential.
4. Quality Assurance
Our product undergoes strict quality control procedures at every stage of production to ensure that it meets international standards and customer expectations. We are committed to providing high-quality and reliable electrical components to our global customers.
5. Product Packaging and Transportation
- The product is carefully packaged in anti-static and shockproof materials to ensure its integrity during transportation. Each terminal is individually wrapped and then placed in a sturdy cardboard box.
- We offer various transportation options to meet your needs. For small orders, we usually ship by express courier such as DHL, FedEx, or UPS, which ensures fast and reliable delivery. For larger orders, we can arrange sea freight or air freight, depending on your urgency and cost requirements. Our experienced logistics team will handle all the shipping details and provide you with a tracking number so that you can monitor the shipment's progress.
6. Trade Terms
We are flexible with trade terms and can accommodate different customer preferences. Commonly, we offer FOB (Free on Board), CIF (Cost, Insurance and Freight), and EXW (Ex Works) terms. Under FOB terms, the goods are loaded on board the vessel at the specified port of shipment, and the buyer is responsible for the freight and insurance costs from that point. CIF terms include the cost of the goods, insurance, and freight to the destination port. EXW terms mean the buyer takes over the goods at our factory, assuming all risks and costs from there. We will work with you to determine the most suitable trade term based on your specific circumstances and requirements.
With our high-current sealed terminal, you can expect excellent performance, durability, and safety in your electrical applications. Contact us today to learn more about this product and how it can meet your specific needs.
